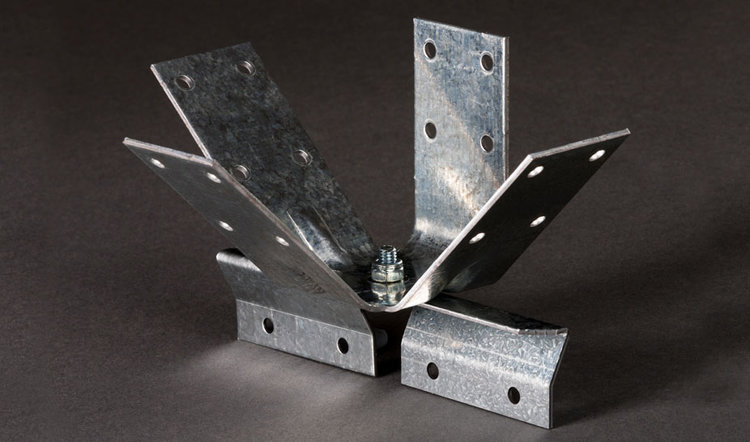

GRIDLOK® USG GRD-10

Designed and tested to provide a consistent maximum 617 lb-ft of bracing capacity to two-way grid ceiling systems and drywall grid systems. A simple click fit and screw fix process dramatically reduces time required to complete rigid back bracing. Features the ability to rotate the unit though 360° minimizing service clashes.

This product works in conjunction with USG Heavy Duty Grin as defined in USG ESR-1222.
Product code: GRD-10

DOWNLOADS

Downloading any material from this website confirms your acceptance of the terms and conditions as outlined in our document here.

CLICK HERE TO DOWNLOAD THE GRIDLOK® SYSTEM FRONT ELEVATION PDF FILE.

CLICK HERE TO DOWNLOAD THE GRIDLOK® SYSTEM SIDE ELEVATION PDF FILE.

CLICK HERE TO DOWNLOAD THE GRIDLOK® SYSTEM ISOMETRIC PDF FILE.

CLICK HERE TO DOWNLOAD THE GRIDLOK® SYSTEM ELEVATION S10 ICC DWG FILE.

CLICK HERE TO DOWNLOAD THE GRIDLOK® SYSTEM ELEVATION S12 ICC DWG FILE.

CLICK HERE TO DOWNLOAD THE GRIDLOK® SYSTEM ISOMETRIC DWG FILE.
